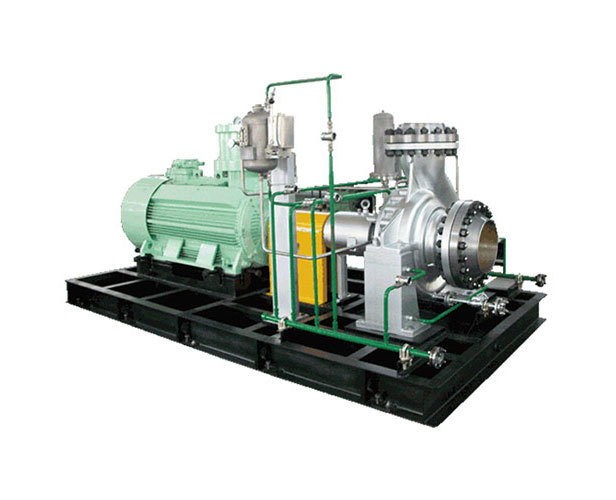

OH2 type centerline mounted single stage cantilever pump, this type of pump has a separate bearing box to withstand all forces applied to the pump shaft and maintain the rotor position. The pump is installed on the base and connected to its drive by a flexible coupling. Main models: GVC series is a heavy-duty cantilever chemical process pump that fully meets all the conditions of the American Petroleum Institute API610 10th edition and the American Petroleum Institute API682 high-temperature mechanical sealing system. The PHPC series fully meets the requirements of the American Petroleum Institute API610 10th edition and can meet the design requirements of three times the nozzle load. The FCY series fully meets the requirements of the American Petroleum Institute API610 8th edition, 9th edition, and 10th edition for installing heavy-duty cantilever chemical process pumps on the upper inlet and outlet centerline.

The GVC series pumps are designed with careful consideration in terms of support, connection, bearings, cooling and other structural aspects, and can be equipped with various auxiliary and monitoring systems, making this series of products highly safe and reliable, with a long service life, and easy maintenance

Convenient, with strong universality of parts and a limited variety of spare parts, it has high performance. The sealing system is designed completely according to API682 second edition "Centrifugal and Rotary Pump Shaft Sealing System", and can be configured with various forms of sealing and flushing cooling schemes, suitable for various complex working conditions.

Design flow rate Q: 5-2600m3/h

Design head H: 16-300m

Operating temperature T: -80O ℃ -4500 ℃

Main uses: Used in refineries, petrochemical industry, coal processing industry, low-temperature engineering, chemical industry, and papermaking.
